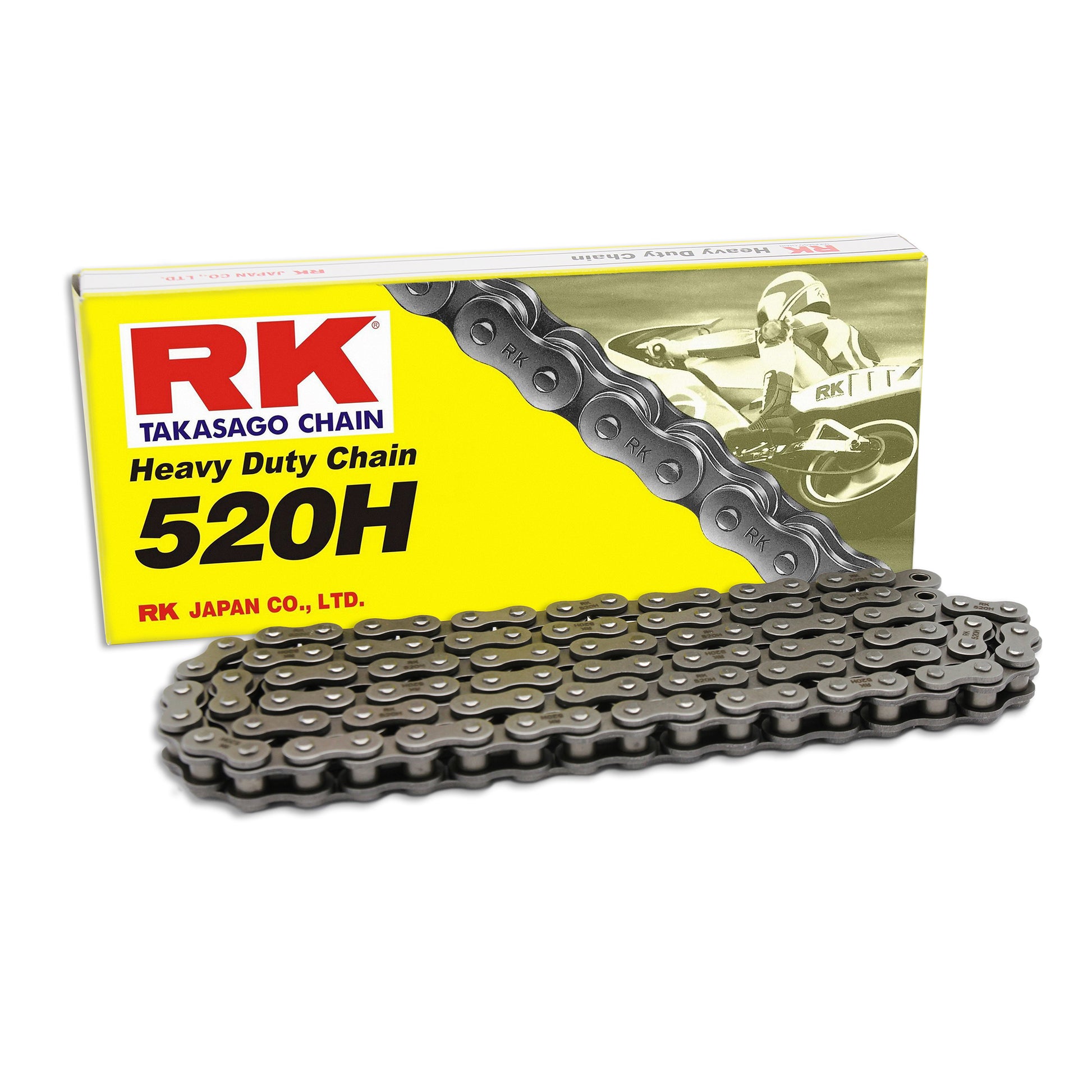

RK 520H-108 Heavy Duty Chain

RK 520H heavy duty non sealed self coloured chain

---

A reliable non sealed affordable chain for heavy duty usage, with improved strength over our standard chain. Manufactured from carbon alloy steel, which is heat-treated and shot-peened for maximum strength and durability. Cold forged seamless bushings for longer chain life. All RK chains are pre-stressed and pre-stretched for superior performance and to minimize elongation during the life of the chain. Excellent quality and cost performance

Manufacturer Part No. (MPN): 520H-108-CL
Barcode: 9555217606596

Length:	108
Colour:	Black (Standard Self Coloured)
Grade:	H Duty NS
Pitch:	520
Sealed:	No
Type:	HD
Tensile Strength (Lbs):	7711
Tensile Strength (N):	34300

Fitment Summary
Compatible with 128 models (yearly).

• Aprilia: AF1 125 Extrema, AF1 125 Sport Pro, RS 125 R Replica, RX 125R, Tuareg 125 Rally
• Honda: CBR250 RA, CBR250 RB, CBR250 RC, CBR250 RD, CMX250 CT, CMX250 CV, CMX250 CX, NSR125 R, XL200 L, XL200 RA, XL200 RB, XL200 RC, XL200 RD, XL200 RE, XR200 R, XR200 RG, XR200 RH, XR200 RJ, XR200 RK, XR200 RL, XR200 RM, XR200 RN, XR200 RP, XR200 RR, XR200 RS, XR200 RT, XR200 RV, XR200 RW, XR200 RX, XR200 RY
• Kawasaki: KR1S 250C1, KR1S 250C2, KR1S 250C3, KR1S 250C4, ZZR 250H1, ZZR 250H10, ZZR 250H11, ZZR 250H12, ZZR 250H13, ZZR 250H14, ZZR 250H15, ZZR 250H16, ZZR 250H2, ZZR 250H3, ZZR 250H4, ZZR 250H5, ZZR 250H6, ZZR 250 H6-F, ZZR 250H7, ZZR 250 H7-F, ZZR 250H8, ZZR 250H9
• Suzuki: DR 400ST, DR 400SV, DR 400SX, DR 400SZ, TU 250X
• Yamaha: TDR 2503CL
