RK Xtreme Upgrade Kit & QC adaptor Ducati 1200 MULTISTRADA/Tour/PP/GT/DVT 10-18 530 OEM pitch

Xtreme upgrade RK 530 OEM pitch chain kit with quick change rear sprocket and adaptor

Contains: RK GB530ZXW-108 Gold XW-Ring Chain | RK E0035 Quick-change sprocket mounting adaptor for Ducati Afam PCD3 B6638 B5638 A4512 525/530 pitch | Sprocket Rear Quick-Change type RK B6638-40 For 530 CHAIN Needs* RK E0035 PCD3 Adaptor | Sprocket Front RK-C6377-15 JTF743 Afam 52900 *530 Pitch*

---

This kit contains a quick change OEM pitch 530 rear steel sprocket and an RK adaptor plate to enable faster and easier future rear sprocket changes Once the adaptor is fitted in place, it is no longer necessary to remove the hub assembly for future sprocket changes. It enables gearing changes more easily. BOTH parts must be used in conjunction with each other though.

Barcode: 5056343035723

Contains:

• 1 x RK GB530ZXW-108 GOLD XW-RING CHAIN
• 1 x SPROCKET FRONT RK-C6377-15 JTF743 AFAM 52900 *530 PITCH*

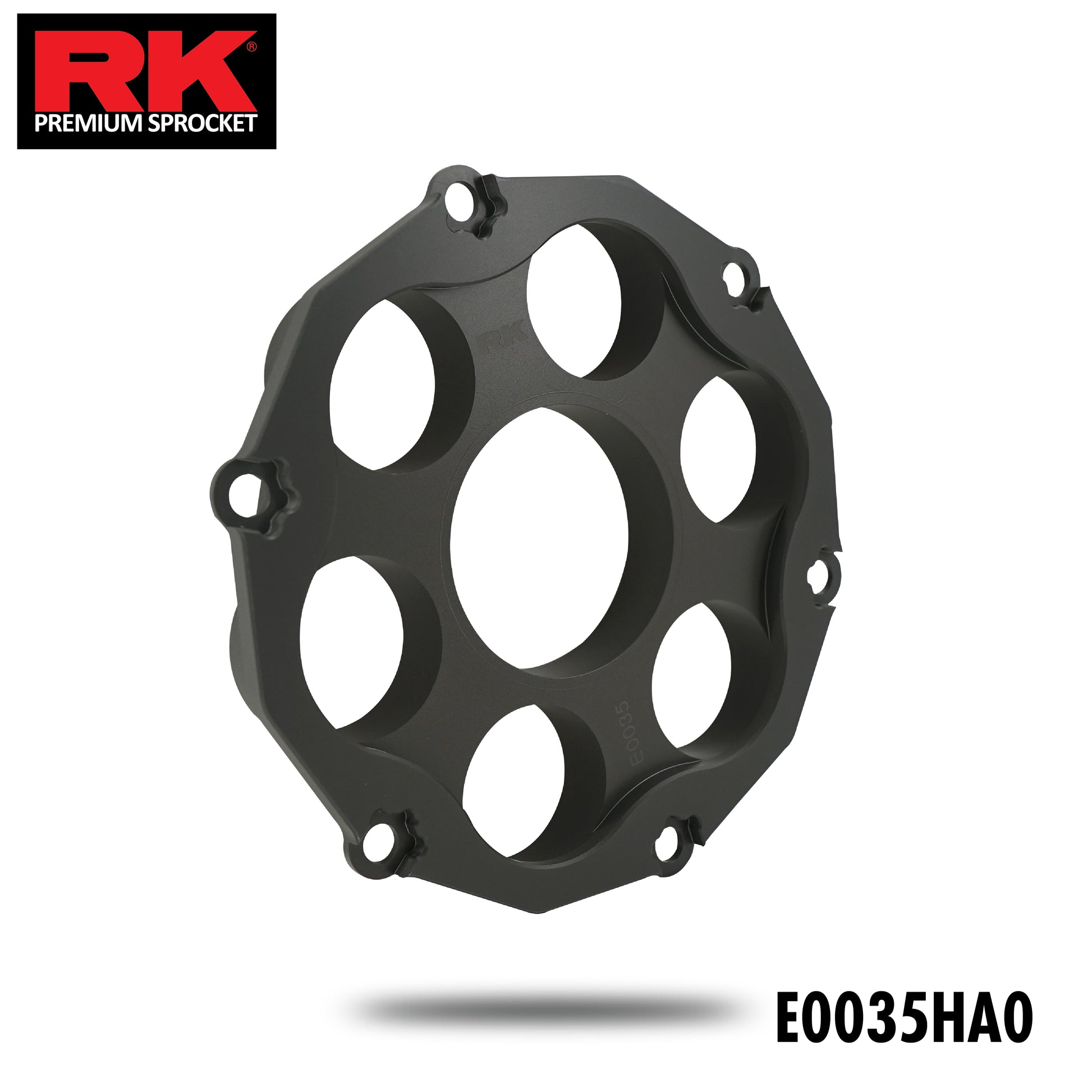

• 1 x RK E0035 QUICK-CHANGE SPROCKET MOUNTING ADAPTOR FOR DUCATI AFAM PCD3 B6638 B5638 A4512 525/530 PITCH
• 1 x RK SPROCKET KIT BOX

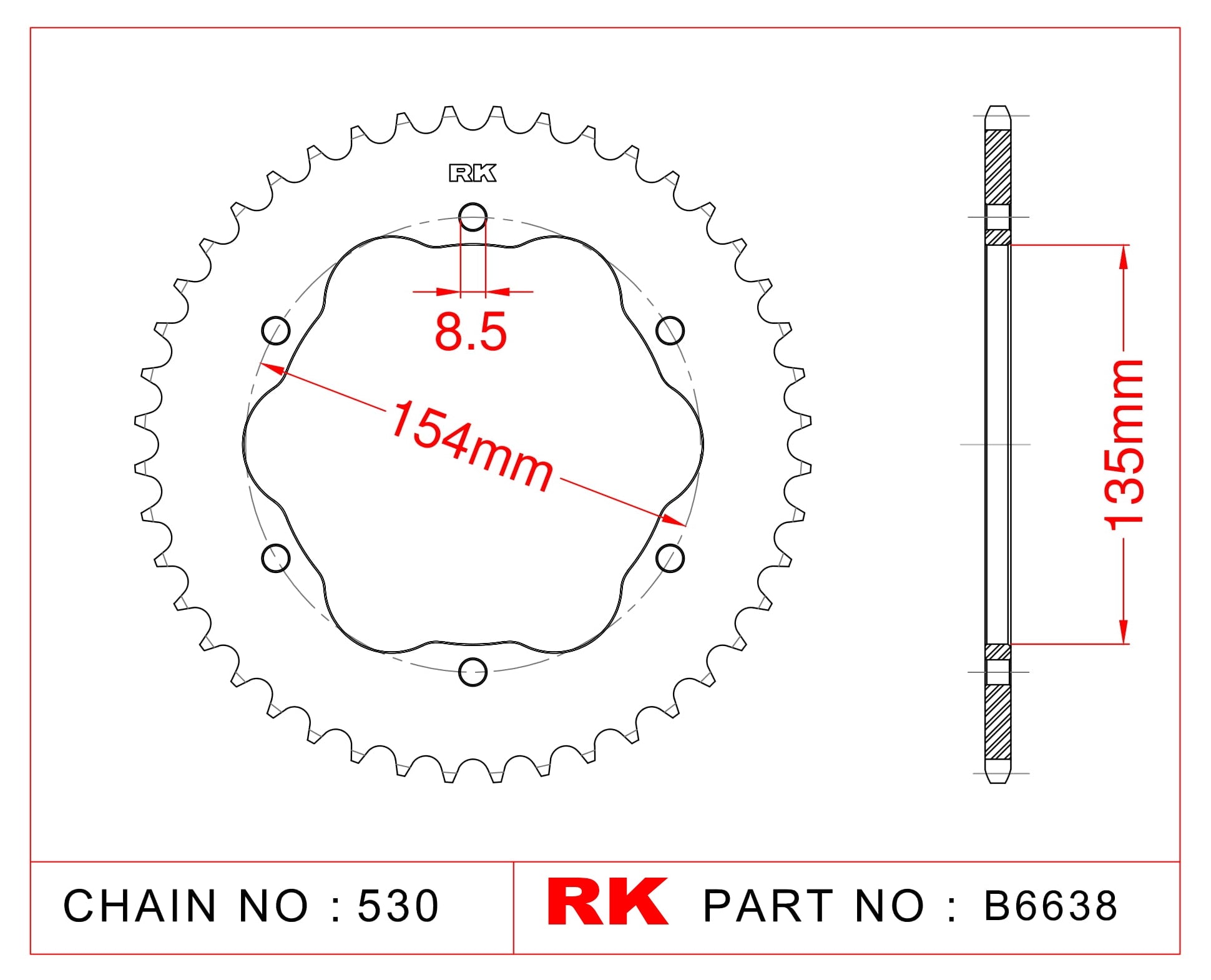

• 1 x SPROCKET REAR QUICK-CHANGE TYPE RK B6638-40 FOR 530 CHAIN NEEDS* RK E0035 PCD3 ADAPTOR

RK GB530ZXW-108 Gold XW-Ring Chain
Colour:	Gold
Pitch:	530
Length:	108
Sealed:	Yes
Type:	ZXW
Tensile Lb:	11195
Tensile N:	49800
Grade:	Super HD X Ring

Grade:

RK Xtreme Upgrade

Fitment Summary
Compatible with 34 models (yearly).

• Ducati: Multistrada 1200 D Air, Multistrada 1200GT, Multistrada 1200 Pikes Peak, Multistrada 1200S, Multistrada 1200 Tour
